Inducer High Speed Compressor Spare Parts Customized Hydraulics

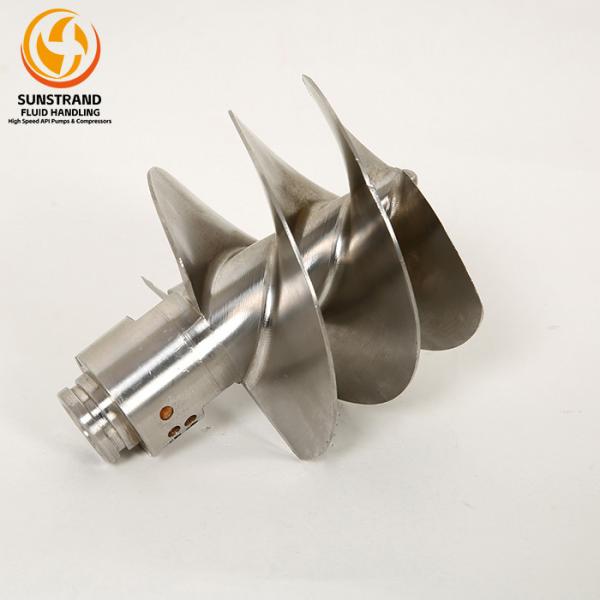

Investment cast and CNC-machined to replicate the original axial-flow blade profile, this Inducer High Speed Compressor Spare Parts Customized Hydraulics serves as a critical cavitation-suppression stage mounted ahead of the centrifugal impeller in Sundyne high-speed pump applications. By pressurizing the incoming fluid before it enters the impeller eye, the inducer effectively reduces the pump's Net Positive Suction Head required (NPSHr), enabling reliable operation in low-NPSH conditions typical of hot boiler feed water, condensate return, and high-vapor-pressure hydrocarbon services. With blade angles verified by CMM inspection at three radial stations and over 400 inducer stages supplied since 2012, our replacement inducer program provides documented, precision-manufactured components validated through on-site NPSH testing at major petrochemical and power generation installations. Technical Specifications ParameterSpecification Product TypeInducer Compatible Pump SeriesSundyne LMV / LMC Series MaterialCA-6NM / 316 SS Manufacturing MethodInvestment Casting + CNC Machining Blade Angle VerificationCMM at 3 Radial Stations NPSHr PerformanceWithin ±3% of OEM Specifications InspectionCMM Dimensional, Liquid Penetrant (PT) Quality CertificationEN 10204 Type 3.1, Dimensional Report PackagingExport-Grade Protective Case with VCI Wrap Key Advantages Enhanced Cavitation Protection: The axial-flow inducer stage pressurizes incoming fluid before it reaches the centrifugal impeller, reducing NPSHr by up to 40% compared to non-inducer configurations and protecting the impeller from cavitation damage during low-suction-pressure operating conditions. Precision Blade Geometry: Blade inlet and outlet angles verified by CMM inspection at hub, mid-span, and tip radial stations against OEM reference specifications, ensuring the inducer's cavitation suppression performance matches original equipment characteristics. Field-Validated NPSH Performance: Operators who have installed our replacement inducers report NPSHr characteristics within ±3% of original equipment specifications, validated through on-site NPSH testing using the 3% head drop method per HI Standard 14.6. Certified Material Integrity: Each inducer is supplied with EN 10204 Type 3.1 material certification and liquid penetrant examination reports for all flow passage surfaces, supporting plant quality assurance documentation. Frequently Asked Questions Q: How does this replacement inducer improve pump cavitation performance? A: The inducer is an axial-flow stage that pressurizes incoming fluid ahead of the centrifugal impeller, effectively reducing NPSHr by up to 40%. Our replacement inducers replicate the original blade profile with CMM-verified angles at three radial stations, and field operators confirm NPSHr characteristics within ±3% of OEM specifications. Q: In what applications is the inducer most critical? A: Inducers are essential in applications with low NPSH margins, including hot boiler feed water near saturation temperature, condensate return services, high-vapor-pressure hydrocarbon pumping, and any service where the available NPSH from the system is limited relative to the pump's requirements.
Product Tags:

Compressor Inducer



SS316 Inducer



Compressor Spare Parts Hydraulics



Inducer High Speed Compressor Spare Parts Customized Hydraulics Images
